New Shimano XTR one-ups SRAM with 51-tooth cog

Shimano's new XTR M9100 mountain bike drivetrain offers the widest cassette range on the market with a massive 10-51T spread.

Heading out the door? Read this article on the new Outside+ app available now on iOS devices for members! Download the app.

Shimano’s new XTR M9100 mountain bike drivetrain offers the widest cassette range on the market with a massive 10-51T spread — one tooth more than SRAM’s XX1 Eagle drivetrain.

Along with that tremendous 12-speed gear range, the new XTR has a completely new freehub standard, three new rear derailleurs with larger 13-tooth pulleys, updated shift levers, and even a dropper seatpost remote.

First, a closer look at the gearing options. This group is Shimano’s first entry into the world of 12-speed rear clusters, and to make the move, it developed the Micro-Spline freehub, which accommodates a 10-tooth cog on the cassette. With this new capability, Shimano offers four different drivetrain options for M9100:

1. 1×12 option with the wide-range 10-51T cassette.
2. 1×12 setup with what Shimano calls a Rhythm Step 10-45T cassette.
3. Double-ring drivetrain with that same 10-45T cassette
4. Finally, for those not ready to ride a 12-speed cog, a lightweight 1×11 option with a 10-45T cassette.

All of the new cassettes feature updated shift ramps that Shimano calls Hyperglide+. It’s hard to imagine how it could make its shifting action any smoother, but it says the redesigned clusters are faster and smoother in both up- and down-shifts.

XTR M9100
The new XTR crank features a direct-mount chainring. Photo: Shimano

Shimano has also updated its cranks to make them lighter and stiffer. The Hollowtech II design offers two Q-factor options (162mm and 168mm) and is available in either a direct-mount single ring option or a 38/28T double-ring. Those two rings can also be swapped for a single-ring configuration. The single chainring sizes available are 30, 32, 34, 36, and 38 teeth.

In case you’re wondering, Shimano has finally done away with a triple-chainring option for the crank, so stock up on those FC-M9020-3 cranks if you love that granny gear.

XTR M9100

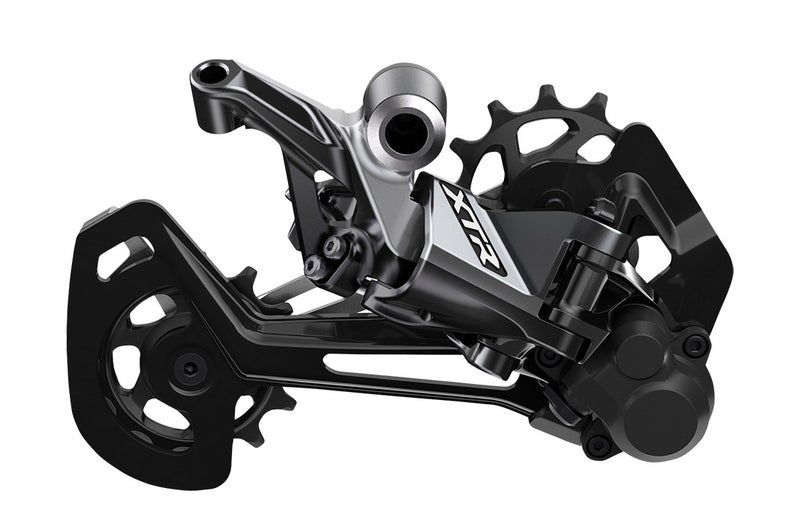

The new XTR rear derailleur line-up has 13-tooth pulleys and the SGS model (shown) accommodates a 51-tooth cog in the rear. Photo: Shimano

To match these different drivetrain configurations, Shimano has three new XTR rear derailleurs that all feature larger 13-tooth pulleys as well as the Shadow RD+ design that keeps the derailleur out of harm’s way if you lay it down.

1. RD-M9100-SGS is the long-cage option that works with both 10-51T and 10-45T cassettes.
2. RD-M9100-GS is the short-cage option that works with both 12-speed 10-45T and 11-speed 10-45T cassettes.
3. RD-M9120-GS is designed for the double-ring drivetrain with the 12-speed 10-45T cassette.

XTR M9100

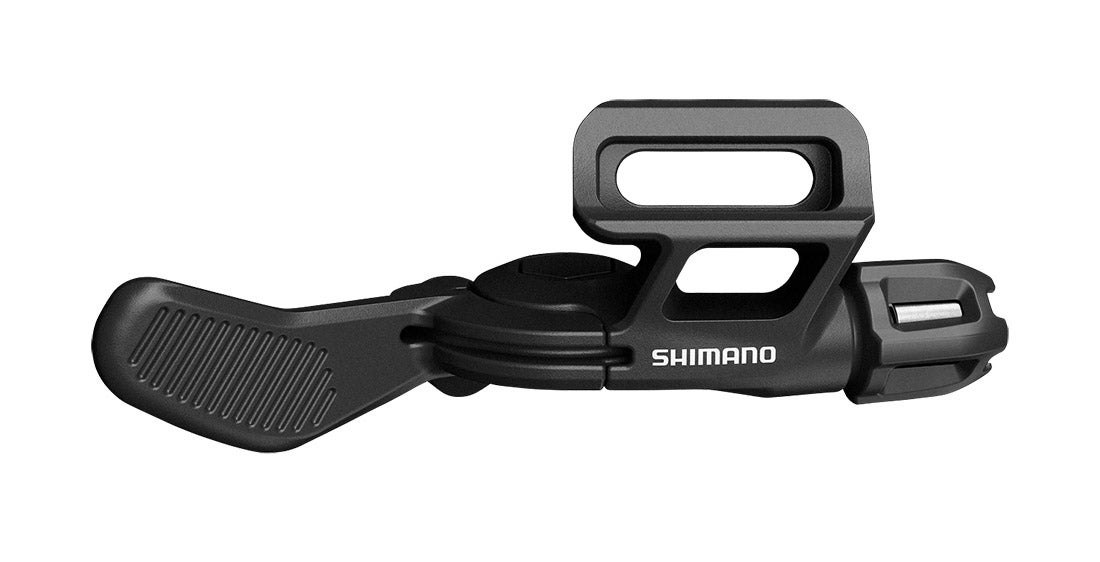

Shimano has introduced a new dropper post lever to its line-up of XTR parts. Photo: Shimano

Beyond the cogs, chainrings, and derailleurs Shimano has updated the XTR shifters to reduce shifting force by a claimed 35 percent and offer more versatility in how the shifters mount on the bar. Along those lines, the new SL-MT800-IL is Shimano’s first stab at a dropper post lever, which it says will pair more naturally with its cockpit. The two- and four-piston hydraulic disc brakes have also been fine-tuned to improve rigidity at the lever and afford more clamp space on the bar for shifters or a dropper post lever. There will also be a new M9120 trail pedal in this updated XTR lineup, which will afford a wider platform for sneaker-style mountain bike shoes.

Shimano says the XTR M9100 series will be available this fall.
